2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
  • 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition
2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition

2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition

Place of Origin Shandong
Brand Name Greenlab
Product Details
Applicable Industries:
Hotels, Machinery Repair Shops, Home Use, Construction Works , Advertising Company
Showroom Location:
None
Condition:
New
Weight:
50 KG
Warranty:
1 Year
Key Selling Points:
Remote Control
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine
Diameter:
126mm
Thickness:
25mm
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
$200.00/units >=1 units
Supply Ability
1000 Unit/Units per Month
Product Description

HHO Geneartor / Electrolyzer Cell / Water Electrolyzer Part



1. Specification:

  1. Material: Titanium metal
  2. Hydrogen output: 300 cc/min
  3. Output pressure: 0.4 MPa  (58 psi / 4 bar)
  4. Electrolyte: pure water
  5. Diameter: 126mm
  6. Thickness: 20mm (excluding screws on it)
  7. Working Voltage: 2.5V
  8. Working Current: 42A DC
  9. Working temperature: 20°c~45 °c
  10. PEM: DuPont membrane with catalyst coated

Note: Power supply is not provided.

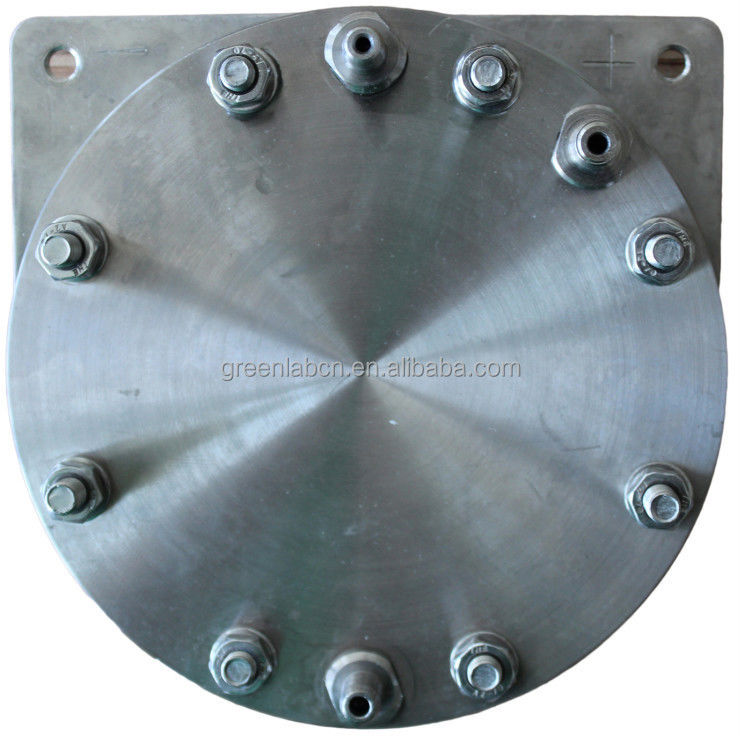

2. Detail of electrolyzer

2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 0



2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 1





 Cell stack:



2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 2





Below is one of assembly type to show the operation.

The related video is available when you email us.

2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 3





 2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 4



2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 52020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 62020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 72020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 82020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 92020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 10



2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 11



3. Package

The package is using hard fermented plastic padding to fix the product, then wrapped them with the corrugated cardboard box.



2020 PEM Technology Household h2 Hydrogen Generator PEM 126mm Diameter Condition 12
