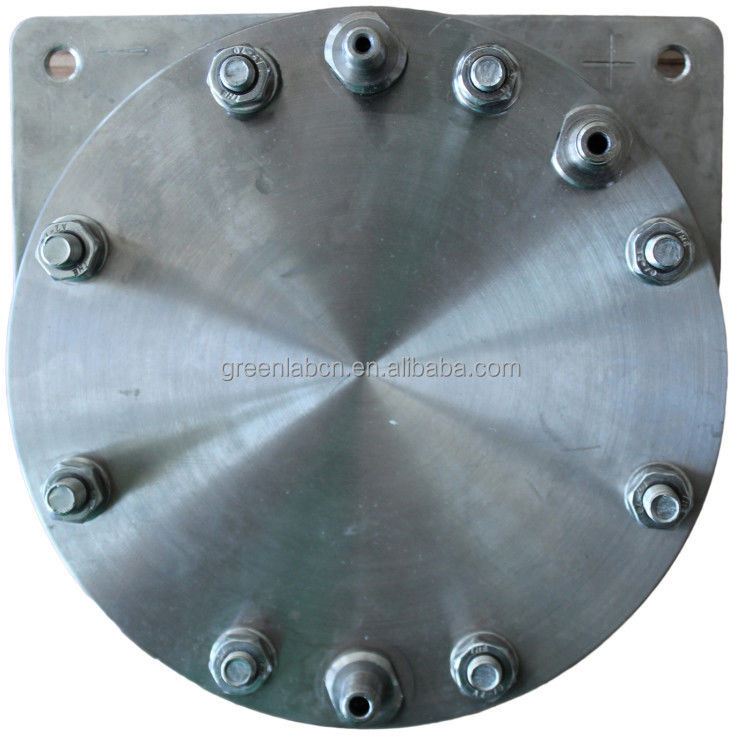

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

HHO Geneartor / Electrolyzer Cell / Water Electrolyzer Part

1. Specification:

1. Material: Titanium metal
2. Hydrogen output: 300 cc/min
3. Output pressure: 0.4 MPa  (58 psi / 4 bar)
4. Electrolyte: pure water
5. Diameter: 126mm
6. Thickness: 20mm (excluding screws on it)
7. Working Voltage: 2.5V
8. Working Current: 42A DC
9. Working temperature: 20°c~45 °c
10. PEM: DuPont membrane with catalyst coated

Note: Power supply is not provided.

2. Detail of electrolyzer

 Cell stack:

Below is one of assembly type to show the operation.

The related video is available when you email us.

3. Package

The package is using hard fermented plastic padding to fix the product, then wrapped them with the corrugated cardboard box.
